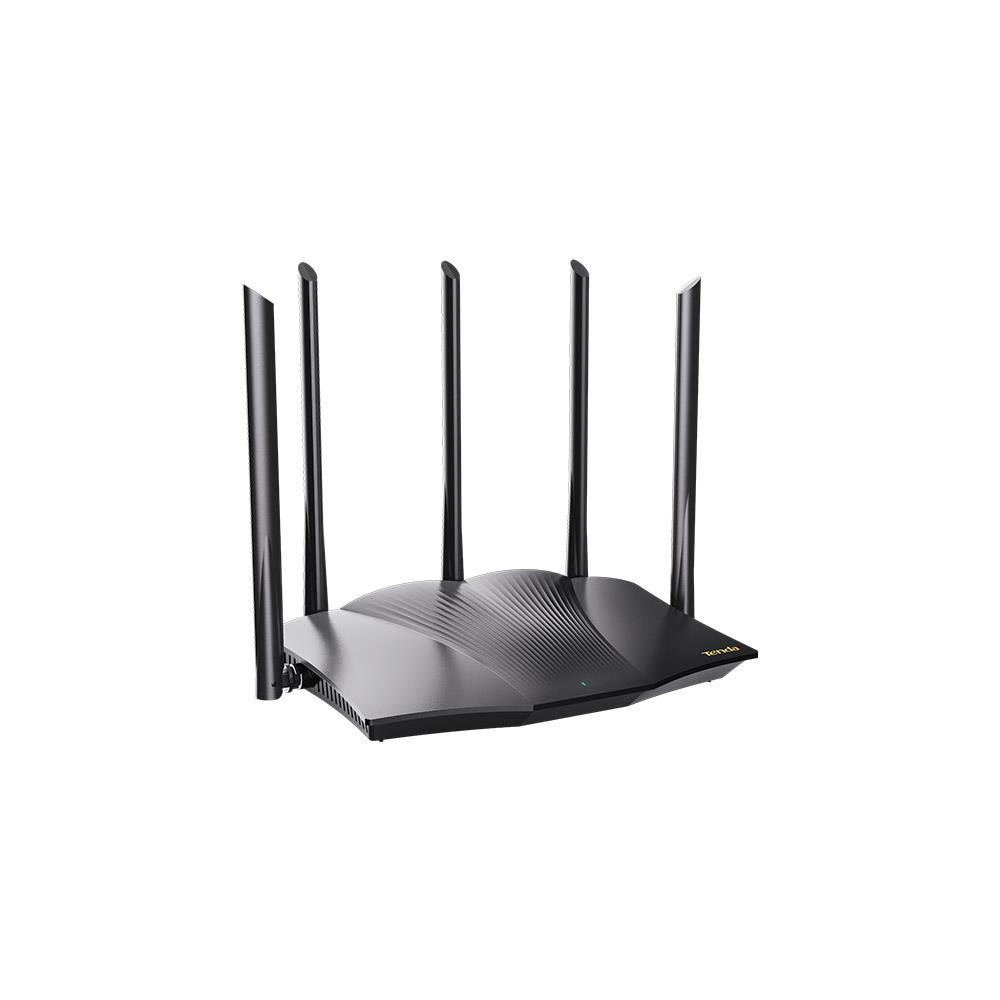

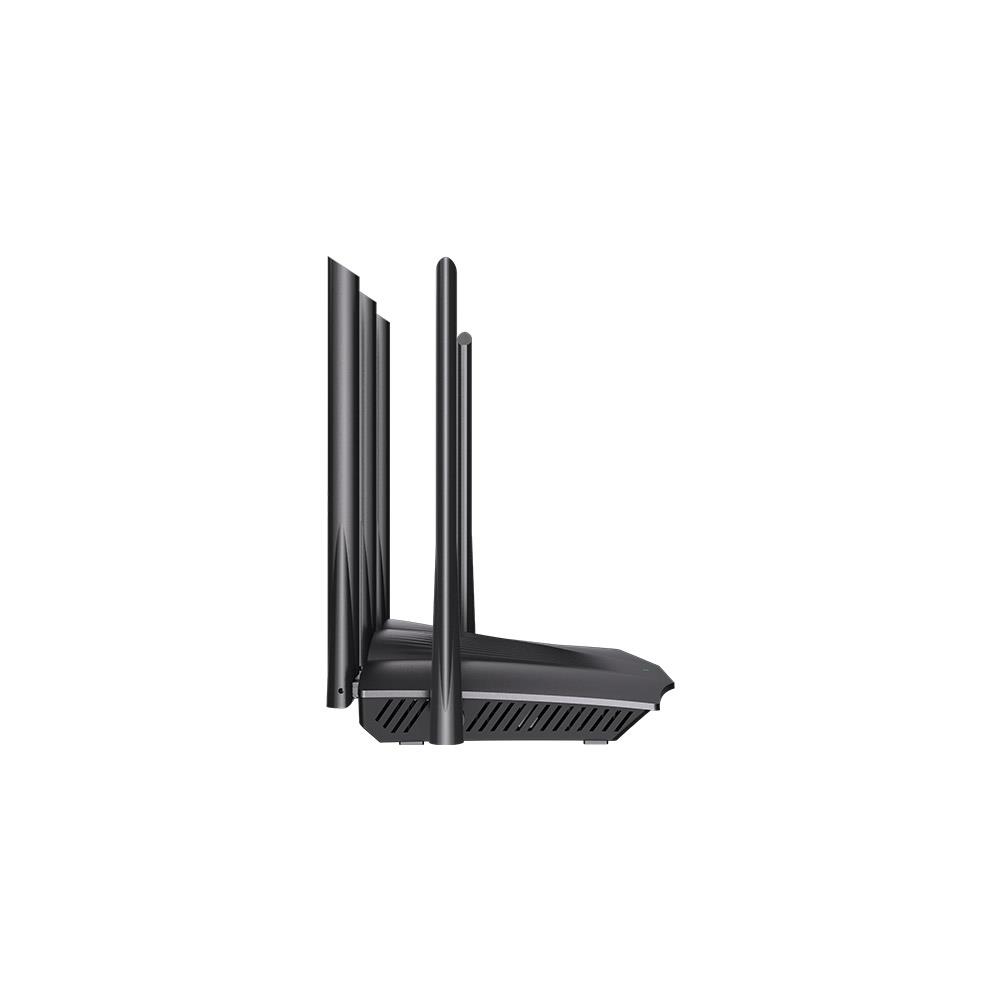

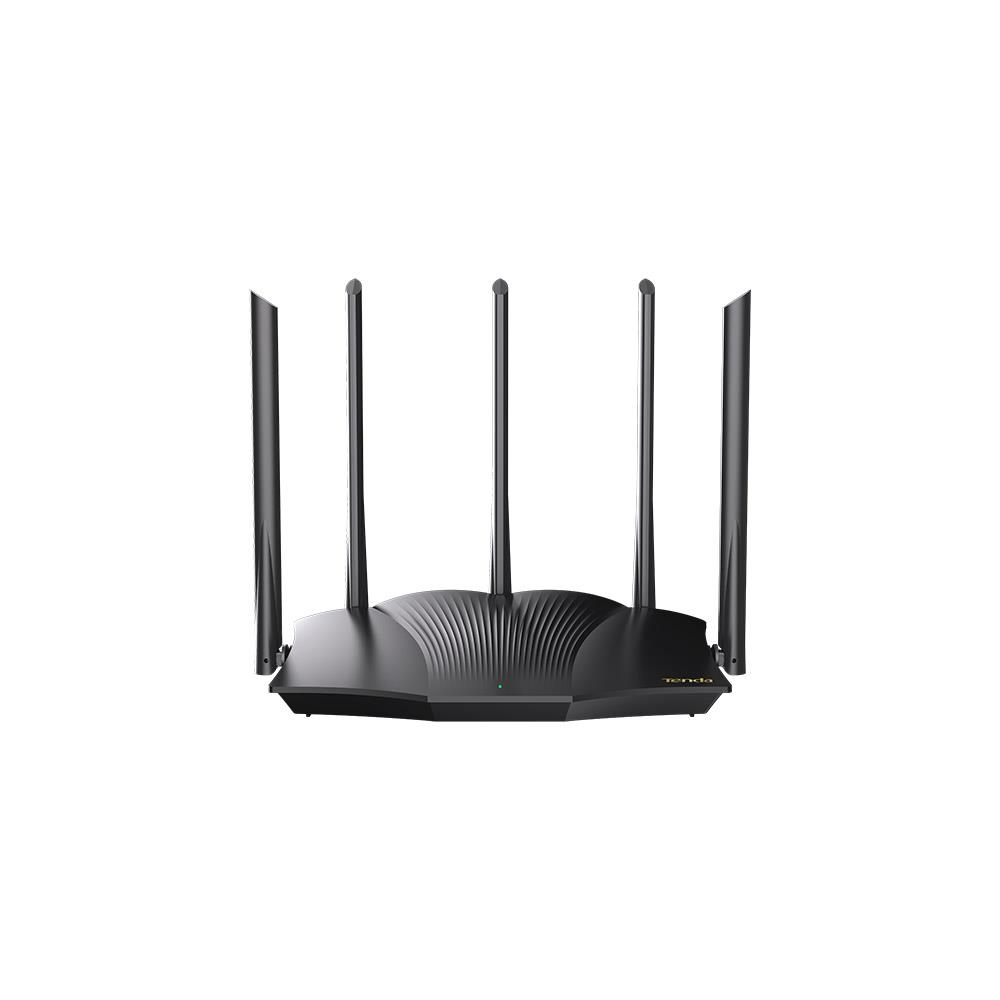

Tenda TX12L AX3000 Dual Band Gigabit Wi-Fi 6 Router

IEEE802.3, IEEE802.3u, IEEE802.3ab

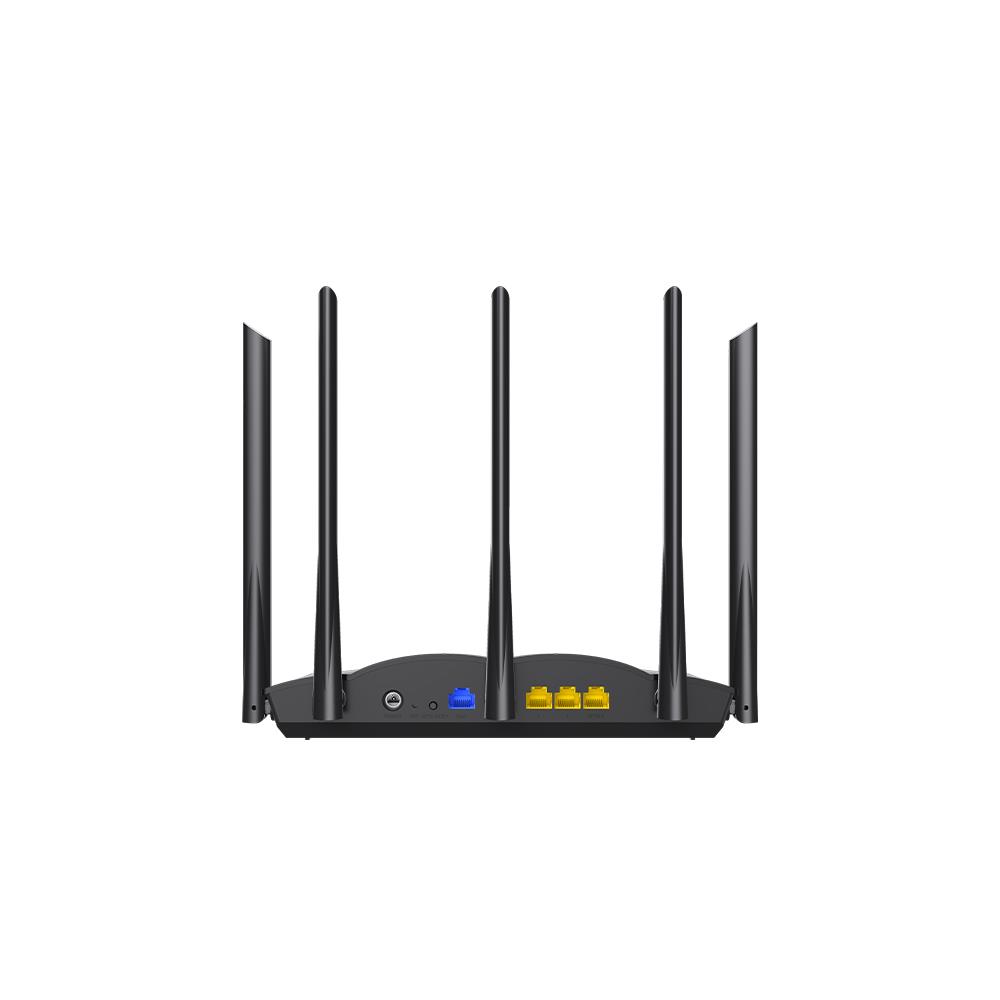

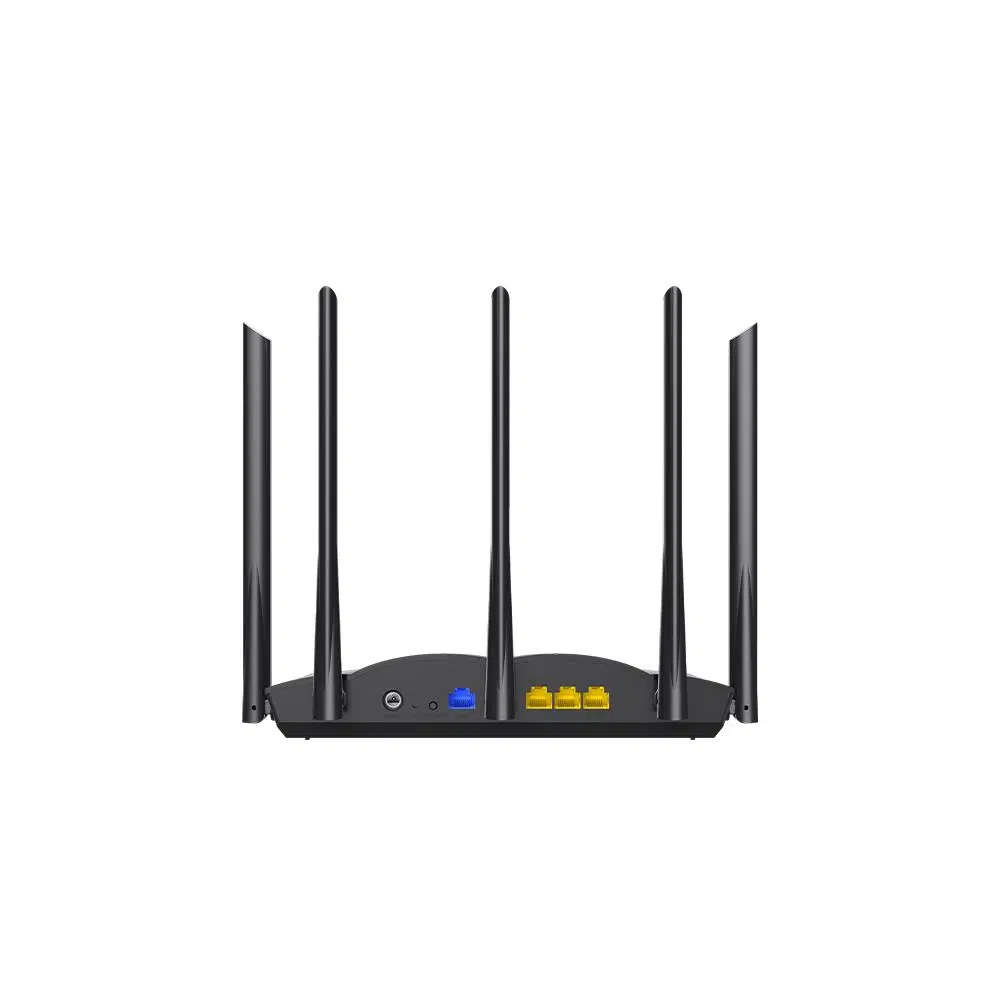

1× Gigabit WAN Port
2× Gigabit LAN Ports

4*6dbi external antennas

1*WPS/Mesh button
1*Reset button

Input：AC 100-240V~50/60Hz
Output:DC 12V⎓1A

1* LED

(L*W*H)
272.44*162.85*43.71

IEEE 802.11ax/ac/n/a 5 GHz
IEEE 802.11ax/n/b/g 2.4 GHz

5 GHz: 2402 Mbps (802.11ax, HE160)
2.4 GHz: 574 Mbps (802.11ax)

CE:
2.4G: 2412-2472MHz(CH1-CH13)
5G: 5150-5350MHz(CH36-CH64)
FCC:
2.4G: 2412-2462MHz(CH1-CH11)
5G: 5150-5350MHz(CH36-CH64)
5725-5850MHz(CH149-CH165)

CE:
<20 dBm (2.4 GHz)
<23 dBm (5 GHz)
FCC:
<30 dBm (2.4 GHz)
<30 dBm (5 GHz)

SSID broadcasting and hiding
MU-MIMO
Beamforming signal directional transmission technology
160MHz
OFDMA
1024-QAM

WPA2-PSK
WPA3-SAE/WPA2-PSK
Wireless Security: Enable/Disable
WPS(WiFi Protected Set-up)
fast encryption

PPPoE, Dynamic IP, Static IP
PPPoE(Russia), PPTP(Russia), L2TP(Russia)
Unify,Maxis,Maxis-special,Celcom,Digi

IPv4&IPv6

Router Mode
AP Mode
Universal Repeater Mode（Client+AP,WISP）

Client Filter
URL Filter
Time Limit

DHCP Server
DHCP Client List
DHCP Static IP Address Reservation and Allocation

Port Forwarding, DMZ Host, UPnP

ICMP Flood Attack Defense
TCP Flood Attack Defense
UDP Flood Attack Defense
Block Ping From WAN

DynDNS, no-ip, oray, 88ip

IPSec Transparent Transmission
PPTP Transparent Transmission
L2TP Transparent Transmission
PPTP VPN Server
PPTP VPN Client
L2TP VPN Client

Wi-Fi+(Mesh System)
Smart diagnosis
IPTV
IPv6
Smart LED on/off

Support App and web management
Bandwidth Control
Guest Network
MAC Address Clone
Supports black list and white list
Unify 2.4 GHz & 5 GHz
Static Routing
Remote Web Management
Backup & Restore configurations
Firmware upgrade online

Operating Temperature : 0℃~40℃
Storage Temperature : -40C ~70℃

Operating Humidity : 10 %~90% RH non-condensing
Storage Humidity : 5 %~ 90%RH non-condensing

CE, FCC,RoHS

Wi-Fi Router *1
RJ45 Ethernet Cable*1
Power Adapter*1
Quick Installation Guide*1
